Non-TOF Joseph Forward and Back Projection

This minimal example demonstrates how to call python API for the non-TOF Joseph forward and back projection functions, which are implemented in parallelproj_core.joseph3d_fwd() and parallelproj_core.joseph3d_back().

import importlib
import parallelproj_core
import matplotlib.pyplot as plt
from utils import show_voxel_cube, show_lors

import array API compatible library (CuPy if CUDA is available, otherwise NumPy).

if parallelproj_core.cuda_enabled == 1 and importlib.util.find_spec("cupy") is not None:
    import array_api_compat.cupy as xp

    dev = xp.cuda.Device(0)
else:
    import array_api_compat.numpy as xp

    dev = "cpu"

Print backend and device info.

print(f"parallelproj_core version: {parallelproj_core.__version__}")
print(f"parallelproj_core cuda enabled: {parallelproj_core.cuda_enabled}")
print(f"using array API compatible library: {xp.__name__} on device {dev}")

parallelproj_core version: v2.0.1
parallelproj_core cuda enabled: 0
using array API compatible library: array_api_compat.numpy on device cpu

Define a mini sparse demo image.

image = xp.zeros((5, 5, 5), dtype=xp.float32, device=dev)
image[0, 2, 4] = 0.25
image[4, 2, 4] = 0.25
image[0, 0, 0] = 0.5
image[4, 4, 4] = 0.5

voxel_size = xp.asarray([2.0, 2.0, 2.0], device=dev, dtype=xp.float32)
img_origin = xp.asarray([-1.0, -1.0, -1.0], device=dev, dtype=xp.float32)

Define LOR start and end points.

lor_start = xp.asarray(
    [[14.0, 3.5, 7.0], [-1, -1, -8], [7, -6, -6]],
    device=dev,
    dtype=xp.float32,
)
lor_end = xp.asarray(
    [[-8.0, 3.5, 7.0], [-1, -1, 14], [7, 12, 12]],
    device=dev,
    dtype=xp.float32,
)

Forward projection of the demo image.

img_fwd = xp.zeros(lor_start.shape[0], dtype=xp.float32, device=dev)
parallelproj_core.joseph3d_fwd(
    lor_start, lor_end, image, img_origin, voxel_size, img_fwd
)
print(img_fwd)

[0.75      1.        1.4142135]

fig = plt.figure(figsize=(6, 6), layout="constrained")
ax = fig.add_subplot(111, projection="3d")
show_voxel_cube(ax, image, voxel_size, img_origin)
show_lors(
    ax,
    lor_start,
    lor_end,
    labels=[f"LOR-{i}: {float(x):.2f}" for i, x in enumerate(img_fwd)],
)

ax.set_xlim(-10, 15)
ax.set_ylim(-10, 15)
ax.set_zlim(-10, 15)
ax.set_xlabel("x [mm]")
ax.set_ylabel("y [mm]")
ax.set_zlabel("z [mm]")
ax.set_box_aspect([1, 1, 1])
ax.set_title(

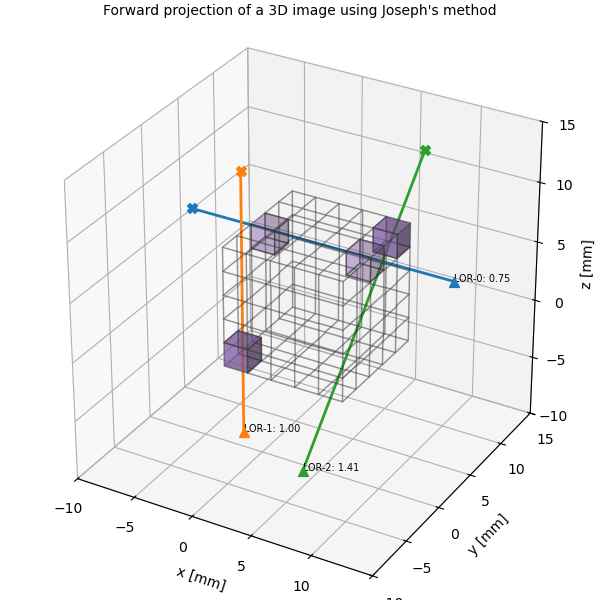

    "Forward projection of a 3D image using Joseph's method", fontsize="medium"
)
fig.show()

back projection of ones along the same LORs.

back_ones = xp.zeros(image.shape, dtype=xp.float32, device=dev)
parallelproj_core.joseph3d_back(
    lor_start,
    lor_end,
    back_ones,
    img_origin,
    voxel_size,
    xp.ones(img_fwd.shape, dtype=xp.float32, device=dev),
)

fig2 = plt.figure(figsize=(6, 6), layout="constrained")
ax2 = fig2.add_subplot(111, projection="3d")
show_voxel_cube(ax2, back_ones, voxel_size, img_origin)
show_lors(
    ax2, lor_start, lor_end, labels=[f"LOR-{i}" for i in range(lor_start.shape[0])]
)

ax2.set_xlim(-10, 15)
ax2.set_ylim(-10, 15)
ax2.set_zlim(-10, 15)
ax2.set_xlabel("x [mm]")
ax2.set_ylabel("y [mm]")
ax2.set_zlabel("z [mm]")
ax2.set_box_aspect([1, 1, 1])
ax2.set_title(

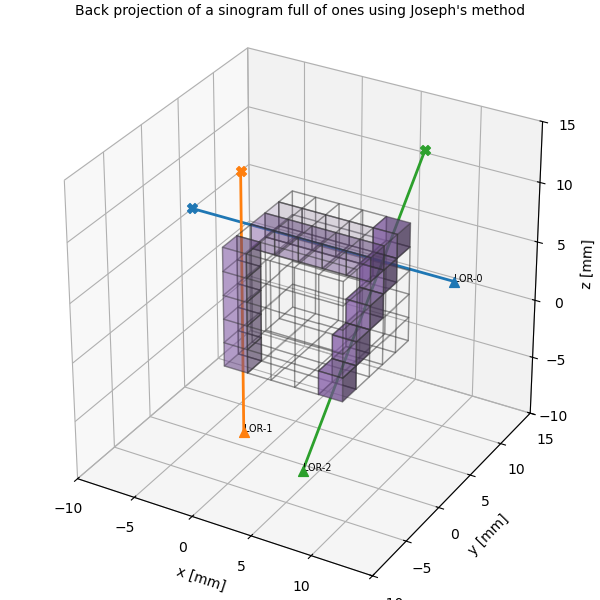

    "Back projection of a sinogram full of ones using Joseph's method",
    fontsize="medium",
)

fig2.show()
